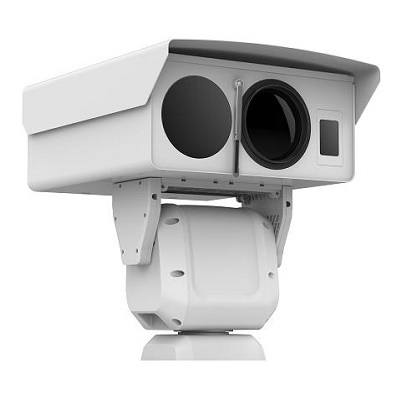

Hikvision DS-2TD8166-180ZE2F/K Thermal & Optical Bi-spectrum Network Stable PTZ Camera

Technical Specification

Features:
  • Make: Hikvision
  • Model code: DS-2TD8166-180ZE2F/K
  • Colour Type: Colour / Monochrome
  • Resolution: 640 x 512 resolution
  • Digital (DSP): Yes
Read more
Additional info:

Leading image processing technology: Adaptive AGC, DDE, 3D DNR, NETD < 40mk (@25°C, F#=1.0)  Smart tracking: Panorama tracking, Event tracking and Multi-scene patrol tracking  Smart tracking linkage: thermal view and optical view  Powerful behavior analysis algorithm: Line crossing, Intrusion, Region Entrance & Exit  Reliable temperature exception alarm function  Advanced fire detection algorithm

Read more
Make Hikvision
Manufacturer Hikvision
Category IP Cameras products
Model code DS-2TD8166-180ZE2F/K
Colour Type Colour / Monochrome
Resolution 640 x 512 resolution
Digital (DSP) Yes
Specialist Type Thermal
Sensitivity Lux 0.0005 ~ 0.005
Auto Iris Yes
Direct Drive Yes
Electrical Specifications Voltage: 48 V DC
Power Consumption: 220 W
Focal Length mm 45 ~ 180
Wide Dynamic Range Yes
Picture Elements HxV 640 x 512
Network Properties Image Frame Rate: 25 ~ 30 fps
Interface: Built-in RJ45; 10M/100M
Network Protocols: IPv4/IPv6,HTTP,HTTPS,802.1x,Qos,FTP,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP,RTCP,RTP,TCP,UDP,IG MP,ICMP,DHCP, PPPoE, Bonjour
Back Light Compensation Yes
Auto Gain Control Yes
White Balance Yes
Electronic Shutter Range 1/1 ~ 1/30,000 s
Signal Mode PAL, NTSC
Y/ C (Video Output) 1.0V [p-p]/75Ω
Compression Type H.264, MPEG4, MJPEG
Physical Specifications Weight g: 60,000
Dimensions mm: 439 x 649 x 649
Environmental Specifications Protection: IP66
Operating Temperature oC: -40 ~ +65 C (-40 ~ +149 F)
Operating Humidity %: 0 ~ 90
System Requirements Web Browser: IE 7+, Chrome 18+, Firefox 5.0+, Safari 5.02+; Multiple Languages
Additional info
  • Leading image processing technology: Adaptive AGC, DDE, 3D DNR, NETD < 40mk (@25°C, F#=1.0)
  • Smart tracking: Panorama tracking, Event tracking and Multi-scene patrol tracking
  • Smart tracking linkage: thermal view and optical view
  • Powerful behavior analysis algorithm: Line crossing, Intrusion, Region Entrance & Exit
  • Reliable temperature exception alarm function
  • Advanced fire detection algorithm
