MOBOTIX launches S14 FlexMount - The world’s first flexible double hemispheric camera

Product Profile

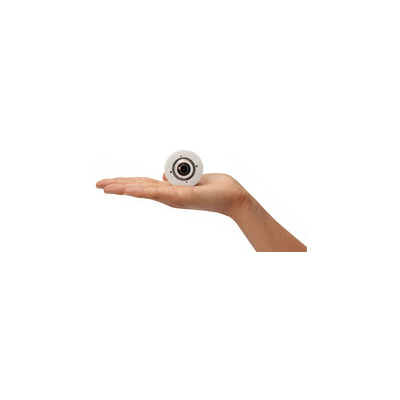

The S14 FlexMount from MOBOTIX, the world’s first flexible double hemispheric camera, is now available. The camera, which is available in both mono (S14M) and dual (S14D) versions, features miniature lens units and offers a wide range of application opportunities. For instance, the S14D can be equipped with two hemispheric lens units with integrated microphone that are connected to the main housing via cables.

This makes it possible to fully secure two rooms located next to or on top of one another with just one single S14. The slim design of the module units, which are available in white and black, permit an extremely discreet installation.

Two rooms secured with one single camera

The S14 FlexMount offers the option to set up two hemispheric lens units simultaneously in order to completely cover two adjacent rooms with just one single S14D. When installed in a certain way, the S14D can also see around corners or secure indoor and outdoor areas at the same time. The two sensors allow the S14 to generate two distortion-corrected, high-resolution 180° panorama images, each with a resolution of 3.1 megapixels. All other MOBOTIX lenses, from super-wide angle to tele lens, will be available in the near future as day or night versions.

The S14 is the world's first hemispheric day-and-night camera. When both modules with black-and-white and colour sensors are mounted directly next to each other and cover the same area, the camera automatically chooses the best available mode depending on the lighting conditions. This provides for excellent colours in daylight as well as superb light sensitivity in dark environments. Panning and zooming into the image is done purely electronically. The user is provided with detailed views and other image sections without any mechanical movement, meaning that there is no wear-and-tear to the camera and no maintenance is required.

Weatherproof, discreet and energy efficient

Both module units and the separate housing with the latest dual camera board are weatherproof in accordance with IP65 and operate in a temperature range of -30°C to +60°C (-22°F to +140°F). The flat housing, including flash memory with up to 64 GB and all external connectors (Ethernet, MiniUSB, MxBus), can be installed discreetly and with optimal protection behind a wall or ceiling panel so that only the lens units in their ultra-compact protective housing are visible. Power is supplied very cost effective via a network cable (PoE). At less than five watt-hours, the energy consumption is extremely low.

Wide range of application opportunities

The camera's technical features and very discreet mounting open up a whole range of application opportunities. In L-shaped rooms, for example, the two sensor modules can be positioned at the corner in correct angles to each other, therefore capturing the entire room without any blind spots. Therefore, the S14 is particularly well-suited for use in hotels, banks and retail stores where the highest levels of security and discretion are required. The S14 can also demonstrate its strengths at security gates and in offices. MOBOTIX also offers the appropriate installation accessories for mounting the sensor module on thicker walls. Using several extension pieces (each approx. 40 mm), longer "tunnel holes" through a wall can also be bridged.

MOBOTIX software included free of charge

As usual with all MOBOTIX products, the complete software for configuration and operation of the camera is integrated directly into the camera. Additionally, professional video management software can be downloaded from the website free of charge.

Read more

Technical Specification

Make MOBOTIX
Manufacturer MOBOTIX AG
Category IP Cameras products
Model code S14 FlexMount
Chip Inch Size 1/2 inch
Colour Type Colour / Monochrome
Resolution 2048 x 1536 resolution
Specialist Type Megapixel
Sensitivity Lux 0.5
Electrical Specifications Voltage: PoE
Power Consumption: 4.5 W
Network Properties Image Frame Rate: 3MEGA: 20
Control: Continuous up to 8x Zoom + Pan/Tilt (digital)
Interface: Ethernet 10/100 Mbit, MiniUSB, MxBus
Zoom Yes
Physical Specifications Weight g: 650
Dimensions mm: 201 x 110
Environmental Specifications Protection: IP65
Operating Temperature oC: -30 ~ +60
Additional info The flat housing, including long-term flash memory and external connectors (Ethernet, MiniUSB, MxBus), can be installed discreetly and with optimal protection behind a wall or ceiling.
