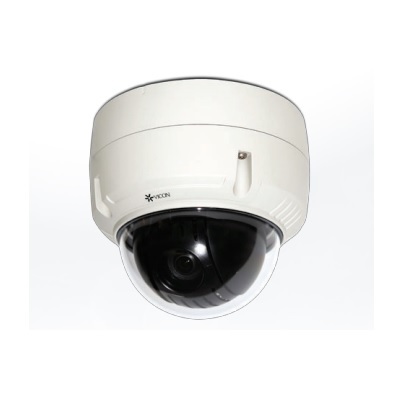

Vicon SN673V-B outdoor PTZ network camera
Technical Specification
Features:
- Make: Vicon
- Model code: SN673V-B
- Chip Inch Size: 1/2.8 inch
- Colour Type: True Day / Night
- Resolution: 1920 x 1080 resolution
Additional info:
1080P (1920x1080P) day/night camera H.264 and M-JPEG compression formats 20X optical zoom and 16X digital zoom Min. illumination: Color 0.35 lux; B/W: 0.013 lux True WDR (120 dB), DIS (Digital Image Stabilisation), tampering, defog, and object detection function Supports local recording to Micro-SD card Powered by 12 VDC/24 VAC and PoE
Read more| Make | Vicon |
|---|---|
| Manufacturer | Vicon Industries |
| Category | IP Cameras products |
| Model code | SN673V-B |
|
Chip Inch Size: 1/2.8 inch Colour Type: True Day / Night Resolution: 1920 x 1080 resolution Digital (DSP): 1 Specialist Type: PTZ Motion Activated: 1 Focal Length mm: 4.7 ~ 94 Wide Dynamic Range: 1 Picture Elements HxV: 1920 x 1080 Back Light Compensation: 1 Auto Gain Control: 1 White Balance: 1 Electronic Shutter Range: 1/3 ~ 1/30,000 Zoom: 1 Compression Type: H.264, M-JPEG |
|
| Electrical Specifications | Voltage: 12 V DC, 24 V AC, PoE |
| Network Properties |
Image Frame Rate: 50 ~ 60 fps Interface: 10/100Base-T Network Protocols: IPv4/IPv6, TCP/IP, UDP, HTTP, RTP, RTSP, QoS, DHCP, uPnP, ARP, HTTPS, RTCP, FTP, Zeroconf, Bonjour |
| Physical Specifications |
Weight g: 1,600 Dimensions mm: 150 x 154 |
| Environmental Specifications |
Operating Temperature oC: -20 ~ +60 C (-4 ~ +140 F) Protection: IP66, IK10 Operating Humidity %: 0 ~ 90 |
| Additional info |
|
