Videotec NXPTZHD camera for aggressive environments

Product Profile

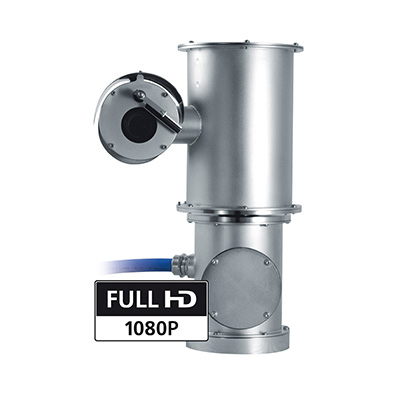

Videotec's NXPTZHD is an exceptional, stainless steel, FULL-HD, PTZ camera that guarantees high performance with high-definition images. It is ideal for video surveillance applications in highly corrosive environments such as high-traffic areas, industrial zones and offshore/onshore marine areas.

NXPTZHD features

The full-HD, day/night, 1080p, 60fps camera with 1/2.8" sensors and 30x zoom can accurately identify details of a scene and provides from 2 to 4 video streams simultaneously (H.264 or MJPEG, up to a total of 20 Mbits, depending on configuration).

The full-IP connectivity of NXPTZHD allows all camera and P&T functions to be controlled via network, including wiper, washer pump, pre-sets, illuminator activation and setup, using the most common ONVIF-S VMS?s on the market.

No maintenance needed

This elegant and compact HD PTZ camera requires no maintenance and is made entirely of AISI316L stainless steel. A double surface-polishing process makes sure that resistance to corrosion is both improved and guaranteed.

Operational performance has been maximised with a variable horizontal and vertical speed of up to 100°/s and a pre-set recall accuracy of 0.02°.

Complete protection against bad weather

The IP66/IP68 rating ensures complete protection against bad weather and allows immersion in up to 1m water for two hours. The IP69 certification means that the device can be cleaned with high-pressure, high-temperature water jets. The operating temperature ranges from -4°C to 6°C.

Installation is really simple, thanks to the pre-installed multipolar cable that is supplied with the unit. The HD-PTZ camera always comes with a built-in wiper, with a wide choice of tanks with washer pumps, with different delivery heights and capacities.

Read more

Technical Specification

Make Videotec
Manufacturer Videotec
Category IP Cameras products
Model code NXPTZHD1FVW0Z00A
Chip Inch Size 1/3 inch
Colour Type Colour / Monochrome
Resolution 1080p resolution
Digital (DSP) Yes
Specialist Type Network
Sensitivity Lux 0.013 ~ 1.4
Auto Iris Yes
Direct Drive Yes
Electrical Specifications Voltage: 230 V AC
Power Consumption: 120 W
Motion Activated Yes
High Speed Yes
Focal Length mm 4.3 ~ 129
Wide Dynamic Range Yes
Picture Elements HxV 352 x 240
Network Properties Image Frame Rate: 60 fps
Control: PTZ
Network Protocols: TCP/IPv4-IPv6, UDP/IPv4-IPv6, HTTP, NTP, DHCP, WS-DISCOVERY, QoS, IGMP
Back Light Compensation Yes
Auto Gain Control Yes
White Balance Yes
Electronic Shutter Range 1/1 ~ 1/10000 s
S/ N (Signal/ Noise) Ratio dB >50
Zoom Yes
Compression Type H.264/AVC, MJPEG
Physical Specifications Weight g: 26,500
Dimensions mm: 54 x 31 x 49
Environmental Specifications Protection: IP66, IP68, IP69
Operating Temperature oC: -40 ~ +60 C (-40 ~ +140 F)
HD Yes
Additional info
  • Entirely made from AISI 316L electropolished stainless steel
  • Camera Full HD 1080p, 30x, 60fps
  • Easy installation thanks to the pre-wired multipolar cable supplied with the unit
Download PDF version
