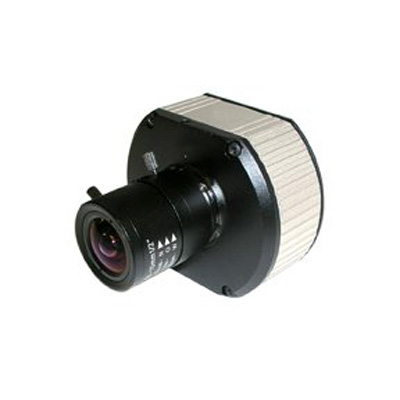

Arecont Vision AV5110 5 megapixel JPEG IP megavideo camera
Technical Specification
Features:
- Make: AV Costar
- Model code: AV5110
- Series: MegaVideo® Compact Series
- Chip Inch Size: 1/2 inch
- Colour Type: Colour
Additional info:
The AV5110 series network camera is part of Arecont Vision’s full line of MJPEG megapixel cameras. It delivers full motion progressive scan 2592 x 1944 video at 9fps featuring MegaVideo image processing and associated functions such as multiple zoom windows and motion detection in a compact package.
Read more| Make | AV Costar |
|---|---|
| Manufacturer | AV Costar (Arecont Vision) |
| Category | IP Cameras products |
| Model code | AV5110 |
| Series | MegaVideo® Compact Series |
|
Chip Inch Size: 1/2 inch Colour Type: Colour Specialist Type: PTZ Sensitivity Lux: 0.3 @ F1.4 Lens Mount: C/CS mount Picture Elements HxV: 1280 x 1024 Back Light Compensation: BackLightCompensation Auto Gain Control: AutoGainControl White Balance: WhiteBalance S/ N (Signal/ Noise) Ratio dB: 50 Zoom: Zoom Compression Type: M-JPEG |
|
| Network Properties |
Image Frame Rate: 24 ~ 32 fps Interface: 100Base-T Ethernet Network Protocols: TFTP, HTTP |
| Electrical Specifications | Power Consumption: 3 W |
| Physical Specifications |
Weight g: 164 Dimensions mm: 76 x 63.5 x 31.7 |
| Environmental Specifications |
Operating Temperature oC: 0 ~ 50 Operating Humidity %: 0 ~ 90 |
| Additional info |
The AV5110 series network camera is part of Arecont Vision’s full line of MJPEG megapixel cameras. It delivers full motion progressive scan 2592 x 1944 video at 9fps featuring MegaVideo image processing and associated functions such as multiple zoom windows and motion detection in a compact package.
|
