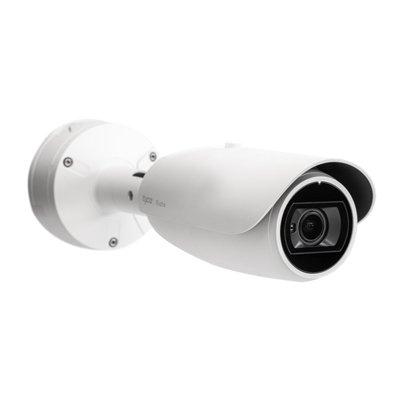

Cloudvue TCCF303B11 3MP Outdoor Bullet 3.2-10mm Varifocal
Technical Specification
- Make: Cloudvue
- Model code: TCCF303B11
- Chip Inch Size: 1/2.8 inch
- Colour Type: Colour / Monochrome
- Resolution: 3 MP resolution
The powerful Illustra Flex Gen3 3MP Bullet Camera is designed to offer a high-image quality, feature rich surveillance option for a wide range of applications. The increased amount of pixels per foot in these models improve image detail in wide areas such as loading docks and airport terminals. Featuring a tough enclosure, the Flex Bullet Camera is ideal for exterior applications of small to medium size offices, retail boutiques, schools, and small bank branches looking for a rugged camera that can withstand harsh environments. Installations that strive for a combination of high-resolution and high-performance at a competitive price point, all while simplifying installation and configuration stand to benefit the most from the Flex Gen3 3MP Bullet Camera.
Read more| Make | Cloudvue |
|---|---|
| Manufacturer | Cloudvue |
| Category | IP Cameras products |
| Model code | TCCF303B11 |
|
Chip Inch Size: 1/2.8 inch Colour Type: Colour / Monochrome Resolution: 3 MP resolution Sensitivity Lux: 0.005 ~ 0.05 Focal Length mm: 3.2 ~ 10 Wide Dynamic Range: 1 Back Light Compensation: 1 Auto Gain Control: 1 White Balance: 1 Electronic Shutter Range: 1/4s ~ 1/10,000s S/ N (Signal/ Noise) Ratio dB: 50 Compression Type: MJPEG, H.264, H.264 IntelliZip, H.265 and H.265 IntelliZip |
|
| Electrical Specifications |
Voltage: 24 V AC / PoE Power Consumption: 24 VAC: Max 14.0W, PoE: Max 12.95W |
| Network Properties |
Image Frame Rate: 20 fps / 60 fps Interface: RJ-45(10/100BASE-T) Network Protocols: TCP/IP, IPv4, IPv6, TCP, UDP, HTTP, FTP, DHCP, WS-Discovery, DNS, DDNS, RTP, RTCP, RTSP, TLS, Unicast, Multicast, NTP, ICMP, IGMP, SMTP, WS-Security, IEEE 802.1x, PEAP, EAP-TLS, EAPoL, SSH, HTTPS, SOAP, WSAddressing, CIFS, SNMP, UPNP, RTSP, LLDP |
| Physical Specifications | Dimensions mm: 91 x 325 |
| Environmental Specifications |
Protection: IP66, IP67, IK10 Operating Temperature oC: -40 ~ +50 C (-40 ~ +122 F) Operating Humidity %: < 90 |
| Additional info |
The powerful Illustra Flex Gen3 3MP Bullet Camera is designed to offer a high-image quality, feature rich surveillance option for a wide range of applications. The increased amount of pixels per foot in these models improve image detail in wide areas such as loading docks and airport terminals. Featuring a tough enclosure, the Flex Bullet Camera is ideal for exterior applications of small to medium size offices, retail boutiques, schools, and small bank branches looking for a rugged camera that can withstand harsh environments. Installations that strive for a combination of high-resolution and high-performance at a competitive price point, all while simplifying installation and configuration stand to benefit the most from the Flex Gen3 3MP Bullet Camera. |
