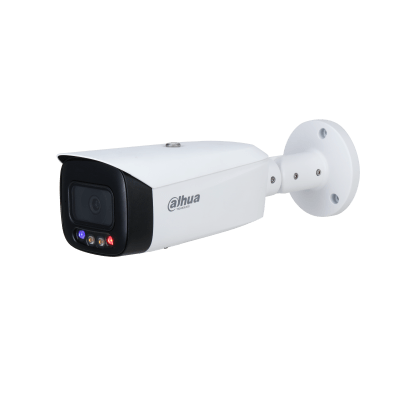

Dahua Technology IPC-HFW3449T1-AS-PV 4MP Full-color Active Deterrence Fixed-focal Bullet WizSense Network Camera
Technical Specification
- Make: Dahua Technology
- Model code: IPC-HFW3449T1-AS-PV
- Series: WizSense Series
- Chip Inch Size: 1/2.8 inch
- Colour Type: Colour / Monochrome
4MP, 1/2.7” CMOS image sensor, low illuminance, high image definition Outputs max. 4MP (2688 × 1520) @30 fps H.265 codec, high compression rate, low bit rate Built-in warm illuminator, and the max. illumination distance: 40 m ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human) Abnormality detection: Motion detection, video tampering, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection. Supports sound and light alarm linkage. When an alarm is triggered, the camera links sound alarm and light flashing. Supports one-tap disarming. You can disarm the events of alarm output, sending email, audio, and light in the configured period. Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card, built-in Mic and speaker 12V DC/PoE power supply IP67 protection SMD Plus Red and blue flashlight alarm
Read more| Make | Dahua Technology |
|---|---|
| Manufacturer | Dahua Technology Ltd |
| Category | IP Cameras products |
| Model code | IPC-HFW3449T1-AS-PV |
| Series | WizSense Series |
|
Chip Inch Size: 1/2.8 inch Colour Type: Colour / Monochrome Resolution: 4MP resolution Specialist Type: Network Sensitivity Lux: 0.003 Motion Activated: 1 Focal Length mm: 2.8 mm; 3.6 mm; 6 mm Wide Dynamic Range: 1 Picture Elements HxV: 2688 x 1520 Back Light Compensation: 1 Auto Gain Control: 1 White Balance: 1 Electronic Shutter Range: 1/3 s–1/100,000 s S/ N (Signal/ Noise) Ratio dB: >56 Compression Type: H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream) |
|
| Electrical Specifications |
Voltage: 12 V DC, PoE Power Consumption: 2W (12V DC); 2.6W (PoE) |
| Network Properties |
Image Frame Rate: 25 ~ 30 fps Interface: RJ-45 (10/100 Base-T) Network Protocols: IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; 802.1x; SNMP |
| Physical Specifications |
Dimensions mm: 288 x 94 x 85 Weight g: 1000 |
| Environmental Specifications |
Protection: IP67 Operating Temperature oC: -40 ~ +60 C (-40 ~ +140 F) Operating Humidity %: <95 |
| System Requirements | Web Browser: IE: IE8 and later, Chrome, Firefox, Safari: Safari 12 and later |
