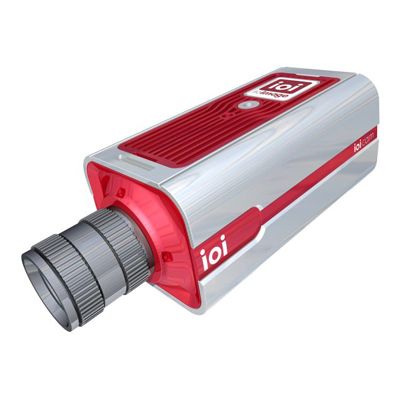

ioimage ioicam wdc100dn - Wide Dynamic Range IP Camera with built-in Intelligent Video

Product Profile

The new ioicam wdc100dn combines high performance video analytics and a state-of-the-art wide-dynamic-range IP camera, introducing a unique all-in-one professional surveillance solution that makes intelligent video easier to deploy, integrate, operate and maintain.

The camera includes ioimage's high-performance DSP-based video analysis applications for automated detection and tracking of intruders, unattended baggage, vehicles and removed items.  Designed for simplicity, all applications can be set up and operated within minutes, either via web interface or control software.  The camera performs the complete analysis process independent of any external resource.

The camera contains built-in digital-pixel processing and unique intelligent video image optimisation features that assure the best video quality for clear-cut detection in extreme-lighting conditions (such as bright light and dark shadow areas), inclement weather and hard-to-see scenarios.  Automatic day/night switchover provides day-time colour and night-time black and white surveillance for uninterrupted operation.

The camera supports dual IP and analogue solution architectures with hybrid outputs for showing alarm video with on-screen-displays over MPEG4 streaming video as well as composite video outputs.  In addition, the camera provides two-way audio, dry contact connections and a rule-based event engine for controlling multiple alarm inputs and relay outputs.

Read more

Technical Specification

Make ioimage Ltd
Manufacturer ioimage Ltd
Category IP Cameras products
Model code ioicam wdc100dn
Chip Inch Size: 1/3 inch
Colour Type: Colour / Monochrome
Resolution: 540 resolution
Digital (DSP): Digital
Sensitivity Lux: 0.6
Auto Iris: AI
Direct Drive: DD
Lens Mount: CS mount
Motion Activated: MotionActivated
Wide Dynamic Range: WideDynamicRange
Picture Elements HxV: 720 x 540
Back Light Compensation: BackLightCompensation
Auto Gain Control: AutoGainControl
White Balance: WhiteBalance
S/ N (Signal/ Noise) Ratio dB: 34
Signal Mode: PAL/NTSC
Compression Type: MPEG-4
Electrical Specifications Voltage: 12 V DC ~ 24 V AC
Power Consumption: 7.5 W
Network Properties Image Frame Rate: 30 fps
Interface: 10/100 Base, RJ45
Network Protocols: TCP/IP, UDP/IP, HTTP, SMTP, DHCP
Physical Specifications Dimensions mm: 71.3 x 60 x 130
Environmental Specifications Operating Temperature oC: -10 ~ + 50
Operating Humidity %: 0 ~ 90
Additional info

The compact all-in one wdc100dn ioicam combines high performance video analytics with a state-of-the-art ultra-wide-dynamic-range IP camera to achieve a unique high-grade surveillance automation solution that makes intelligent video easier to deploy and operate.
