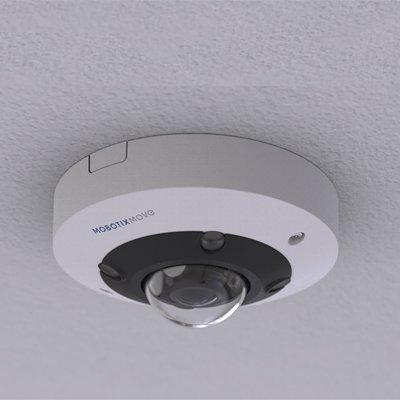

MOBOTIX Mx-VH1A-12-IR-VA 12MP Vandal Hemispheric Analytics Indoor Camera

Product Profile

This high-performance 12MP indoor camera with Edge and backend dewarping delivers a 360-degree view of the entire surveillance area. Thanks to its integrated IR illumination and advanced exposure control, darkness poses no problem to this camera, which also offers eight embedded video analysis functions. DNN (Deep Neural Network) support for Intrusion Detection, Loitering Detection, Object Counting. Simple installation and ready-to-go straight out of the box.

Read more

Technical Specification

Make MOBOTIX
Manufacturer MOBOTIX AG
Category IP Cameras products
Model code Mx-VH1A-12-IR-VA
Series MOBOTIX MOVE
Colour Type True Day / Night
Resolution 12 MP resolution
Sensitivity Lux Color: 0.1 lux, B/W: 0.01 lux
Electrical Specifications Voltage: PoE
Power Consumption: 12.95 W
Motion Activated Yes
Focal Length mm 1.65 mm
Back Light Compensation Yes
White Balance Yes
Electronic Shutter Range 1 – 1/24767 sec.
Zoom Yes
Compression Type H.265/MJPEG/H.264 (MPEG-4 Part 10/AVC) Baseline/Main Profile/High Profile
Network Properties Interface: RJ45, 1 Gbps Ethernet
Network Protocols: ARP, IPv4/v6, TCP/IP, UDP, RTP, RTSP, HTTP, HTTPS, ICMP, FTP, SMTP, DHCP, PPPoE, UPnP, IGMP, SNMP, QoS, ONVIF
Physical Specifications Weight g: 565
Dimensions mm: Ø 130 x 57.8
Environmental Specifications Operating Temperature oC: -10 ~ +55 C (14 ~ +131 F)
Operating Humidity %: 10 ~ 90
Additional info
  • Edge Dewarping and Backend Dewarping
  • IR LED (true day/night function, up to 10 m)
  • Vandal-Proof IK10 (indoor)
  • Sony Progressive Scan CMOS
  • Image Sensor Resolution up to 12MP
  • Multi Codec support (H.265/H.264/MJPEG)
  • Multiple Dewarp Display Modes Digital PTZ/Panorama View/Quad View
  • True Day/Night function (ICR)
  • 3D Motion Compensated Noise Reduction
  • ONVIF Profile S/G/T support
  • Micro SD/SDHC/SDXC Card support up to 1 TB
  • Enhanced Video Analytics Package (abandoned objects/sabotage/wrong direction/object count and removal)
