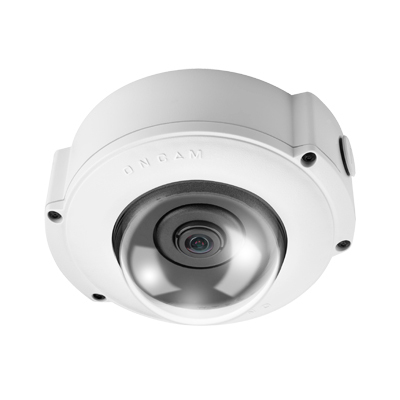

Oncam Evolution 12 Outdoor camera – a 12 megapixel camera with 360-degree view
Product Profile
The Evolution 12MP Camera is vandal-proof and ready for any outdoor challenges
Outdoor camera features
The Evolution-12 Outdoor camera has a 12MP sensor and no moving parts. The unit is designed for quick and easy installations outdoors where a professional and rugged enclosure that can withstand harsh requirements is required (IP66). The Evolution-12 Outdoor camera is vandal resistant (IK10) and fully supports Power-over-Ethernet standard for installation convenience. The camera also offers simultaneous multiple video streams with resolutions from 544x512 to 3200x3000.
Camera mounting
Available in either black or white finish, the Evolution-12 Outdoor camera is suitable for any ceiling, wall or table mounted applications. A range of mounting accessories is available including pole, pendant and corner brackets and a sun-shield.
Part codes: EVO-12-NMD (White) / EVO-12-NND (Black)
Technical Specification
| Make | Oncam |
|---|---|
| Manufacturer | Oncam |
| Category | IP Cameras products |
| Model code | EVO-12-NMD |
| Yes | |
| Electrical Specifications |
Voltage: 12 V DC Power Consumption: 7.7 W |
| Physical Specifications |
Dimension mm: 175 x 156 x 108 Weight g: 920 |
| Environmental Specifications |
Operating Temperature oC: -40 ~ +55 C (-40 ~ +131 F) Protection: IP66, IK10 Operating Humidity %: 98 |
| Additional info |
Oncam EVO-12-NMD features high-resolution sensor as well as constant 360-degree surveillance. It features no moving parts, no maintenance and silent operation. It also has local 3D dewarping providing 4x Vcam at max 1MP each. Additionally, the camera has up to 10 configurable privacy regions as well as local alarm digital input and output. |
