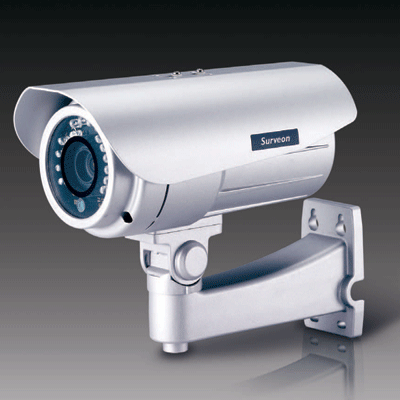

Surveon CAM3260 IP camera with wide temperature for outdoor application

Technical Specification

Features:
  • Make: Surveon
  • Model code: CAM3260
  • Chip Inch Size: 1/3 inch
  • Colour Type: Colour / Monochrome
  • Specialist Type: Infrared
Read more
Make Surveon
Manufacturer Surveon Technology Inc
Category IP Cameras products
Model code CAM3260
Chip Inch Size: 1/3 inch
Colour Type: Colour / Monochrome
Specialist Type: Infrared
Sensitivity Lux: 0
Focal Length mm: 2.8 ~ 11
Picture Elements HxV: 1280 x 1024
Back Light Compensation: BackLightCompensation
Auto Gain Control: AutoGainControl
White Balance: WhiteBalance
Electronic Shutter Range: 1/5 ~ 1/15,000
Compression Type: H.264, MPEG-4, M-JPEG
Electrical Specifications Voltage: 12 V DC, PoE
Power Consumption: 9.6 W
Network Properties Image Frame Rate: 30 fps
Interface: 10/100 Base-T / RJ45
Network Protocols: IPv4, ARP, TCP, UDP, ICMP, DHCP, NTP, DDNS, SMTP
Software: Surveon VMS 2.4
Physical Specifications Weight g: 1,400
Dimensions mm: 105 x 218.8 x 191.41
Environmental Specifications Protection: IP66
Operating Temperature oC: -20 ~ +50
Operating Humidity %: 5 ~ 90
System Requirements Operating System: Microsoft Windows XP/Vista/7
Web Browser: Microsoft IE 6.0 or above
