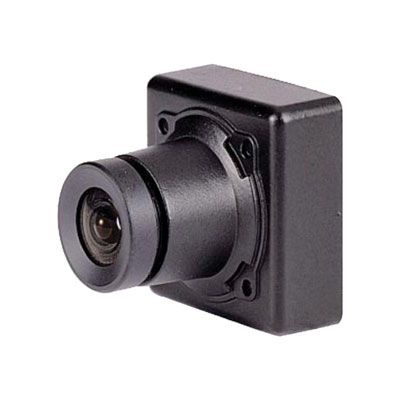

Visionhitech VQ25BH-B36 600 TVL CCTV camera
Technical Specification
Features:
- Make: Visionhitech
- Model code: VQ25BH-B36
- Chip Inch Size ": 1/3 inch
- Resolution TVL: 600
- Digital (DSP): Digital
Additional info:
Visionhitech VQ25BH-B36 is a CCTV camera with 600 TVL.
Read more| Make | Visionhitech |
|---|---|
| Manufacturer | Visionhitech Co., Ltd |
| Category | IP Cameras products |
| Model code | VQ25BH-B36 |
|
Chip Inch Size ": 1/3 inch Resolution TVL: 600 Digital (DSP): Digital Picture Elements HxV: 768 x 494 Auto Gain Control: AutoGainControl Gamma Correction: 0.45 Electronic Shutter range: 1/60 ~ 1/100,000 s S/ N (Signal/ Noise) Ratio dB: >50 Synchronisation: Internal Signal Mode: EIA, CCIR Video Output: 1.0Vp-p Composite. 75 Ohms |
|
| Electrical Specifications |
Voltage: 12 V DC Power Consumption: 90 mA |
| Physical Specifications |
Dimension mm: 25 x 25 Weight g: 80 |
| Environmental Specifications |
Operating Temperature oC: -10 ~ +50 Operating Humidity %: < 90 |
| Additional info | Visionhitech VQ25BH-B36 is a CCTV camera with 600 TVL. |
